Building the World Bank data site as a fast-loading, single-page app with code splitting

David Guan on

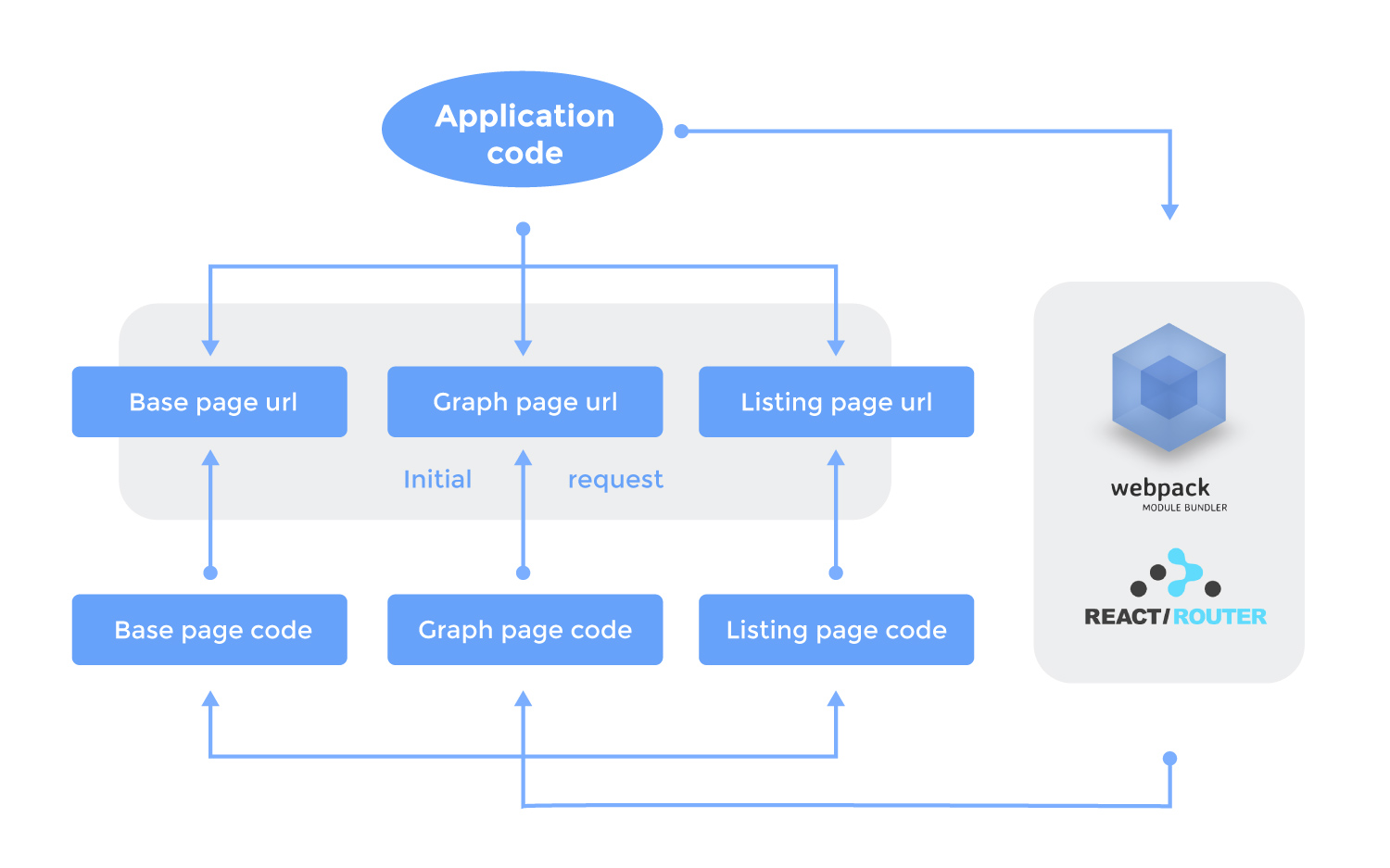

Code splitting saves a lot of stress for your initial load request

Wiredcraft built the recently launched beta.data.worldbank.org, the beta for the World Bank’s Open Data portal, and designed it as an single-page application (SPA) and optimized for mobile. The dataset has about 1,500 different indicator time series for most countries and the portal can display these in graphs and heat maps. Since the site has so many dynamic pieces, we’re using code splitting to improve the application’s performance.

Why We Need Code Splitting

SPA’s client-side routing greatly reduces the round trip between the server and client. We also can use server side rendering (checkout reference about SSR implementation of React and Angular2 to render the initial page in server, which cuts down the initial render time in the client side.

Still one common problem exists: the file’s size request in the initial load becomes bigger when the application becomes larger. We handle this problem by creating on-demand loaded chunks, only requesting the essential files in the initial page. Once we enter different route or need to use some important features, we request those related chunks just once.

With the help of Webpack and React router (our application is based on React), we can implement these on-demand chunks very quickly.

We’re using some iframes in the World Bank project that source from the original site. Splitting the code saves us more than 50% of the inital file request for the iframes, meaning they load super quickly.

Webpack

Webpack is a famous module bundler and here’s a great article for learning and using their product. We can create on demand load chunks by define split point in our code.

Use require.ensure(dependencies, callback) to load CommonJs modules, Use require(dependencies, callback) to load AMD modules. Webpack will detect these split points in the building process.

React Router

React router is a popular client side routing library based on React. We can define routes in plain JavaScript object or declaratively.

Plain JavaScript way:

let myRoute = {
  path: `${some path}`,
  childRoutes: [
    RouteA,
    RouteB,
    RouteC,
  ]
}

Declarative way:

const routes = (
  <Route component={Component}>
    <Route path="pathA" component={ComponentA}/>
    <Route path="pathB" component={ComponentB}/>
  </Route>
)

React router allows us to use lazy load route-related code, also called dynamic routing. We can define our split points in the lazy load code. (Here’s a reference about dynamic routing.)

Code Splitting Implement

Below is a demo of creating two on demand loaded chunks, chunk A will load once when entering rootUrl/A, chunk B will load once when entering rootUrl/B.

Routes

/* ---            RootRoute            --- */
...
import RouteA from './RouteA'
import RouteB from './RouteB'

export default {
  path: '/',
  component: App,
  childRoutes: [
    RouteA,
    RouteB,
  ],
  indexRoute: {
    component: Index
  }
}

/* ---              RouteA              --- */
...
export default {
  path: 'A',
  getComponent(location, cb) {
    require.ensure([], (require) => {
      cb(null, require(`${PathOfRelatedComponent}`))
    }, 'chunkA')
  }
}

/* ---              RouteB              --- */
...
export default {
  path: 'B',
  getComponent(location, cb) {
    require.ensure([], (require) => {
      cb(null, require(`${PathOfRelatedComponent}`))
    }, 'chunkB')
  }
}

Client side code for client-side rendering

import { match, Router } from 'react-router'

const { pathname, search, hash } = window.location
const location = `${pathname}${search}${hash}`

//use match to trigger the split code to load before rendering.
match({ routes, location }, () => {
  render(
    <Router routes={routes} history={createHistory()} />,
      document.getElementById('app')
  )
})

Server code for server-side rendering

app.createServer((req, res) => {
  match({ routes, location: req.url }, (error, redirectLocation, renderProps) => {
    if (error)
      writeError('ERROR!', res)
    else if (redirectLocation)
      redirect(redirectLocation, res)
    else if (renderProps)
      renderApp(renderProps, res)
    else
      writeNotFound(res)
}).listen(PORT)

function renderApp(props, res) {
  const markup = renderToString(<RoutingContext {...props}/>)
  const html = createPage(markup)
  write(html, 'text/html', res)
}

export function createPage(html) {
  return `
  <!doctype html>
  <html>
    <head>
      <meta charset="utf-8"/>
      <title>My Universal App</title>
    </head>
    <body>
      <div id="app">${html}</div>
      <script src="/__build__/main.js"></script>
    </body>
  </html>
  `
}

Implementation Hints

Depends on how you write your module, you may get error: React.createElement: type should not be null, undefined, boolean, or number. It should be a string (for DOM elements) or a ReactClass (for composite components). Check the render method of RoutingContext. Add .default after your component require to solve this problem.

If you got require.ensure is not function promoted, add this polyfill:if (typeof require.ensure !== 'function') require.ensure = (d, c) => c(require) which allow us replace require.ensure to require in server side.

Putting It All Back Together

Code chunks improve the performance of apps, especially on mobile, by reducing the initial code size. We can create chunks in two steps: define split points in routes and use react router’s match in both client side and server side.

For more info on Webpack’s code splitting, check out their Github page and their demo project.

Check out our work on the World Bank’s new Open Data site and tell us your thoughts via Twitter or email!
